旋转接头工作数据

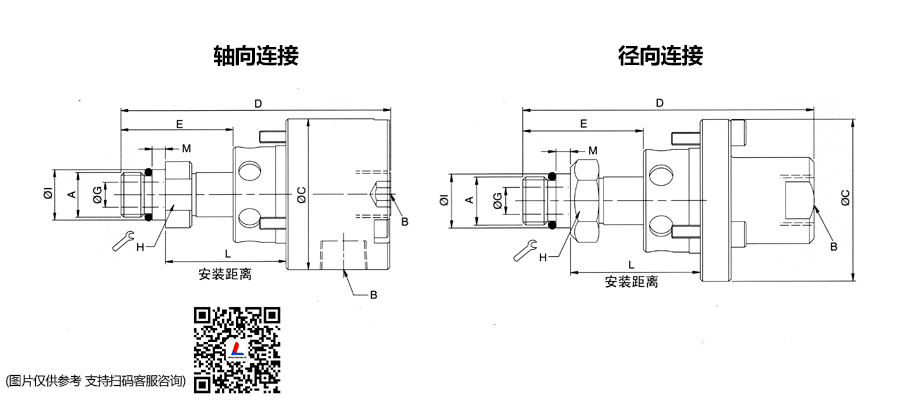

| 订货型号 | B 供给管路连接 | C 最大直径 | D 最大长度 | p 排出口 (6X60°) | A 转体连接 |
| 1129-033-301 | 3/8" PT | 54 | 97 | 44.0/43.0 | M16x1.5左旋 |
| 1129-033-327 | 3/8" PT | 54 | 94 | 39.6/38.6 | M12x 1.25左旋 |
| 1129-050-301 | 3/8" PT | 54 | 101 | 44.0/43.0 | M16x1.5左旋 |
| 1129-859-731 | 3/8" PT | 54 | 106 | 39.2/38.8 | M12x1.25左旋 |
| 1129-01 6-301 | 3/8" PT | 54 | 97 | 44.0/ 43.0 | M16x1.5左旋 |
| 1129-036-301 | 3/8" PT | 54 | 98 | 44.0/ 43.0 | M16x1.5左旋 |
| 1129-036-327 | 3/8" PT | 54 | 94 | 39.6/38.6 | M12x 1.25左旋 |
| 1129-039-301 | 3/8" PT | 54 | 97 | 44.0/43.0 | M16x1.5左旋 |
| 1129-730-731 | G 3/8" | 54 | 94 | 39.2/38.8 | M12x1.25左旋 |
| 1129-927-929 | G 3/8" | 54 | 101 | 39.2/38.8 | M14x1.5左旋 |
| 1129-052-137 | 20 mm沉孔 | 40 | 68 | 25 | M12x1.25左旋 |
