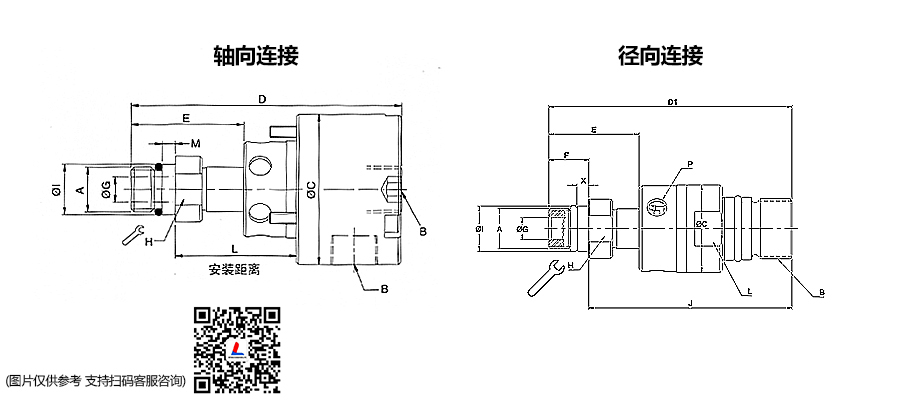

| 订货型号 | B 供给管路连接 | C 最大直径 | D 最大长度 | p 排出口 (6X60°) | A 转体连接 |
| 1121-300-327 | 3/8" PT | 54 | 94 | 39.6/38.6 | M12x1.25左旋 |
| 1121-300-345 | 3/8" PT | 54 | 97 | 44.0/43.0 | M16x1.5 左旋 |
| 1121 -330-327 | 3/8" PT | 54 | 94 | 39.6/38.6 | M12x1.25左旋 |
| 1121 -330-345 | 3/8" PT | 54 | 97 | 44.0/43.0 | M16x1.5 左旋 |
| 1121-380-327 | G3/8"1_径向 1/4" PT轴向 | 54 | 98 | 39.6/38.6 | M12x1.25左旋 |
| 1121-380-345 | G3/8"径向 1/4" PT轴向 | 54 | 102 | 44.0/43.0 | M16x1.5左旋 |
| 1121-400-327 | 3/8" PT | 54 | 94 | 39.6/38.6 | M12x1.25左旋 |
| 1121-400-345 | 3/8" PT | 54 | 98 | 44.0/43.0 | M16x1.5左旋 |
| 1121-410-493 | 3/8" PT | 54 | 105 | 39.6/38.6 | M12x1.25左旋 |
| 1121-430-431 | 3/8" PT | 54 | 108 | 44.0/43.0 | M16x1.5左旋 |
