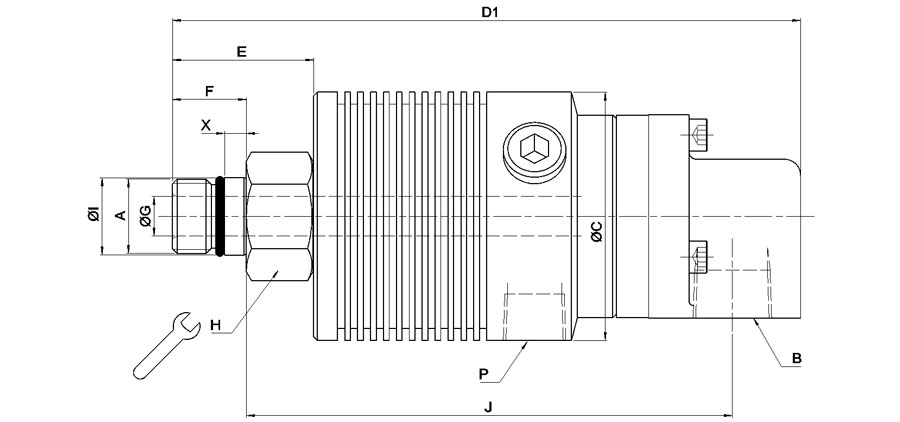

| 订货型号 | B 供给管路连接 | C 最大直径 | D 最大长度 | p 排出口 (6X60°) | A 转体连接 |
| 902-111-165 | 3/8"NPT | 49.5 | 132 | 1/4"NPT | 5/8"-18 UNF左旋 |
| 902-121-188 | G 3/8" | 49.5 | 129 | G 1/4" | M16 ×1.5左旋 |
| 902-138-188 | G 3/8" | 49.5 | 129 | G 1/4" | M16 x 1.5左旋 |
| 902-141-188 | 3/8"PT | 49.5 | 129 | 1/4"PT | M16 x1.5左旋 |
| 902-110-165 | 3/8"NPT | 49.5 | 138 | 1/4" NPT | 5/8"-18 UNF左旋 |
| 902-120-188 | G 3/8" | 49.5 | 135 | G 1/4" | M16 x 1.5左旋 |
| 902-137-188 | G 3/8" | 49.5 | 135 | G 1/4" | M16×1.5左旋 |
| 902-140-188 | 3/8" PT | 49.5 | 135 | 1/4" PT | M16 x 1.5左旋 |
| 902-225-101 | G3/8". | 49.5 | 135 | G1/4" | Two-Flat 12 |
| 902-225-104R | G3/8" | 49.5 | 137 | G1/4"" | 内螺纹12 |
| 902-253-220 | G 3/8"" | 46.8 | 139 | G1/4" |
内六角11 |
